phoenix_title wx.lib.buttons.GenButton

A generic button, and base class for the other generic buttons.


class_hierarchy Class Hierarchy

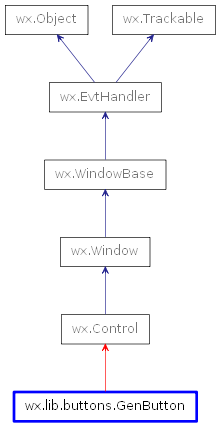

Inheritance diagram for class GenButton:


super_classes Known Superclasses

wx.Control


method_summary Methods Summary

__init__ Default class constructor.
AcceptsFocus Can this window be given focus by mouse click?
DoGetBestSize Overridden base class virtual. Determines the best size of the
DrawBezel
DrawFocusIndicator
DrawLabel
Enable Enables/disables the button.
GetBackgroundBrush Returns the current wx.Brush to be used to draw the button background.
GetBezelWidth Returns the width of the 3D effect, in pixels.
GetDefaultAttributes Overridden base class virtual. By default we should use
GetUseFocusIndicator Returns the focus indicator flag, specifying if a focus indicator
InitColours Calculate a new set of highlight and shadow colours based on
InitOtherEvents Override this method in a subclass to initialize any other events that
Notify Actually sends a wx.EVT_BUTTON event to the listener (if any).
OnGainFocus Handles the wx.EVT_SET_FOCUS event for GenButton.
OnKeyDown Handles the wx.EVT_KEY_DOWN event for GenButton.
OnKeyUp Handles the wx.EVT_KEY_UP event for GenButton.
OnLeftDown Handles the wx.EVT_LEFT_DOWN event for GenButton.
OnLeftUp Handles the wx.EVT_LEFT_UP event for GenButton.
OnLoseFocus Handles the wx.EVT_KILL_FOCUS event for GenButton.
OnMotion Handles the wx.EVT_MOTION event for GenButton.
OnPaint Handles the wx.EVT_PAINT event for GenButton.
OnSize Handles the wx.EVT_SIZE event for GenButton.
SetBackgroundColour Sets the GenButton background colour.
SetBezelWidth Sets the width of the 3D effect.
SetDefault This sets the GenButton to be the default item for
SetForegroundColour Sets the wx.GenButton foreground colour.
SetInitialSize Given the current font and bezel width settings, calculate
SetUseFocusIndicator Specifies if a focus indicator (dotted line) should be used.
ShouldInheritColours Overridden base class virtual. Buttons usually don’t inherit

api Class API


class GenButton(wx.Control)

A generic button, and base class for the other generic buttons.


Methods


__init__(self, parent, id=-1, label='', pos = wx.DefaultPosition, size = wx.DefaultSize, style = 0, validator = wx.DefaultValidator, name = "genbutton")

Default class constructor.

Parameters:
  • parent (wx.Window) – parent window. Must not be None;
  • id (integer) – window identifier. A value of -1 indicates a default value;
  • label (string) – the button text label;
  • pos (tuple or wx.Point) – the control position. A value of (-1, -1) indicates a default position, chosen by either the windowing system or wxPython, depending on platform;
  • size (tuple or wx.Size) – the control size. A value of (-1, -1) indicates a default size, chosen by either the windowing system or wxPython, depending on platform;
  • style (integer) – the button style;
  • validator (wx.Validator) – the validator associated with the button;
  • name (string) – the button name.

See also

wx.Button for a list of valid window styles.


AcceptsFocus(self)

Can this window be given focus by mouse click?

Note

Overridden from wx.Control.


DoGetBestSize(self)

Overridden base class virtual. Determines the best size of the button based on the label and bezel size.

Returns:An instance of wx.Size.

Note

Overridden from wx.Control.


DrawBezel(self, dc, x1, y1, x2, y2)

DrawFocusIndicator(self, dc, w, h)

DrawLabel(self, dc, width, height, dx=0, dy=0)

Enable(self, enable=True)

Enables/disables the button.

Parameters:enable (bool) – True to enable the button, False to disable it.

Note

Overridden from wx.Control.


GetBackgroundBrush(self, dc)

Returns the current wx.Brush to be used to draw the button background.

Parameters:dc (wx.DC) – the device context used to draw the button background.

GetBezelWidth(self)

Returns the width of the 3D effect, in pixels.

Return type:integer

GetDefaultAttributes(self)

Overridden base class virtual. By default we should use the same font/colour attributes as the native wx.Button.

Returns:an instance of wx.VisualAttributes.

Note

Overridden from wx.Control.


GetUseFocusIndicator(self)

Returns the focus indicator flag, specifying if a focus indicator (dotted line) is being used.

Return type:bool

InitColours(self)

Calculate a new set of highlight and shadow colours based on the background colour. Works okay if the colour is dark...


InitOtherEvents(self)

Override this method in a subclass to initialize any other events that need to be bound. Added so __init__ doesn’t need to be overridden, which is complicated with multiple inheritance.


Notify(self)

Actually sends a wx.EVT_BUTTON event to the listener (if any).


OnGainFocus(self, event)

Handles the wx.EVT_SET_FOCUS event for GenButton.

Parameters:event – a wx.FocusEvent event to be processed.

OnKeyDown(self, event)

Handles the wx.EVT_KEY_DOWN event for GenButton.

Parameters:event – a wx.KeyEvent event to be processed.

OnKeyUp(self, event)

Handles the wx.EVT_KEY_UP event for GenButton.

Parameters:event – a wx.KeyEvent event to be processed.

OnLeftDown(self, event)

Handles the wx.EVT_LEFT_DOWN event for GenButton.

Parameters:event – a wx.MouseEvent event to be processed.

OnLeftUp(self, event)

Handles the wx.EVT_LEFT_UP event for GenButton.

Parameters:event – a wx.MouseEvent event to be processed.

OnLoseFocus(self, event)

Handles the wx.EVT_KILL_FOCUS event for GenButton.

Parameters:event – a wx.FocusEvent event to be processed.

OnMotion(self, event)

Handles the wx.EVT_MOTION event for GenButton.

Parameters:event – a wx.MouseEvent event to be processed.

OnPaint(self, event)

Handles the wx.EVT_PAINT event for GenButton.

Parameters:event – a wx.PaintEvent event to be processed.

OnSize(self, event)

Handles the wx.EVT_SIZE event for GenButton.

Parameters:event – a wx.SizeEvent event to be processed.

SetBackgroundColour(self, colour)

Sets the GenButton background colour.

Parameters:colour – a valid wx.Colour object.

Note

Overridden from wx.Control.


SetBezelWidth(self, width)

Sets the width of the 3D effect.

Parameters:width (integer) – the 3D border width, in pixels.

SetDefault(self)

This sets the GenButton to be the default item for the panel or dialog box.

Note

Under Windows, only dialog box buttons respond to this function. As normal under Windows and Motif, pressing return causes the default button to be depressed when the return key is pressed. See also wx.Window.SetFocus which sets the keyboard focus for windows and text panel items, and wx.TopLevelWindow.SetDefaultItem.

Note

Note that under Motif, calling this function immediately after creation of a button and before the creation of other buttons will cause misalignment of the row of buttons, since default buttons are larger. To get around this, call wx.SetDefault after you have created a row of buttons: wxPython will then set the size of all buttons currently on the panel to the same size.


SetForegroundColour(self, colour)

Sets the wx.GenButton foreground colour.

Parameters:colour – a valid wx.Colour object.

Note

Overridden from wx.Control.


SetInitialSize(self, size=None)

Given the current font and bezel width settings, calculate and set a good size.

Parameters:size – an instance of wx.Size or None, in which case the wxPython wx.DefaultSize is used instead.

SetUseFocusIndicator(self, flag)

Specifies if a focus indicator (dotted line) should be used.

Parameters:flag (bool) – True to draw a focus ring, False otherwise.

ShouldInheritColours(self)

Overridden base class virtual. Buttons usually don’t inherit the parent’s colours.

Note

Overridden from wx.Control.
