wx.lib.floatcanvas.FCObjects.Arc

Draws an arc of a circle, centered on point CenterXY, from the first point StartXY to the second EndXY.

The arc is drawn in an anticlockwise direction from the start point to the end point.

Class Hierarchy

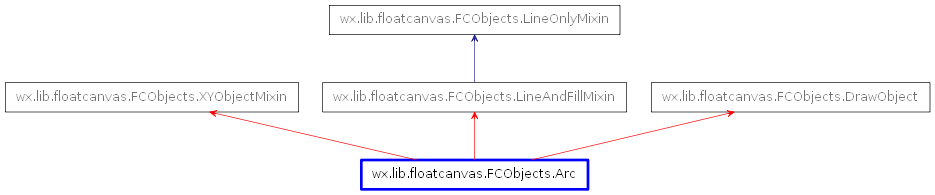

Inheritance diagram for class Arc:

Known Superclasses

wx.lib.floatcanvas.FCObjects.DrawObject, wx.lib.floatcanvas.FCObjects.LineAndFillMixin, wx.lib.floatcanvas.FCObjects.XYObjectMixin

Methods Summary

__init__	Default class constructor.
CalcBoundingBox	Calculate the bounding box.
Move	Move the object by delta

Class API

---

class Arc(XYObjectMixin, LineAndFillMixin, DrawObject)

Draws an arc of a circle, centered on point CenterXY, from the first point StartXY to the second EndXY.

The arc is drawn in an anticlockwise direction from the start point to the end point.

Methods

---

__init__(self, StartXY, EndXY, CenterXY, LineColor = "Black", LineStyle = "Solid", LineWidth = 1, FillColor = None, FillStyle = "Solid", InForeground = False)

Default class constructor.

Parameters:

• StartXY – start point, takes a 2-tuple, or a (2,) NumPy array of point coordinates
• EndXY – end point, takes a 2-tuple, or a (2,) NumPy array of point coordinates

• CenterXY – center point, takes a 2-tuple, or a (2,) NumPy array of point coordinates

• LineColor – see SetColor
• LineStyle – see SetLineStyle
• LineWidth – see SetLineWidth
• FillColor – see SetColor
• FillStyle – see SetFillStyle
• InForeground (boolean) – should object be in foreground

---

CalcBoundingBox(self)

Calculate the bounding box.

---

Move(self, Delta)

Move the object by delta

Parameters:Delta – delta is a (dx, dy) pair. Ideally a NumPy array of shape (2,)
