wx.lib.floatcanvas.FCObjects.ScaledBitmap2

Draws a scaled bitmap

An alternative scaled bitmap that only scaled the required amount of the main bitmap when zoomed in: EXPERIMENTAL!

Class Hierarchy

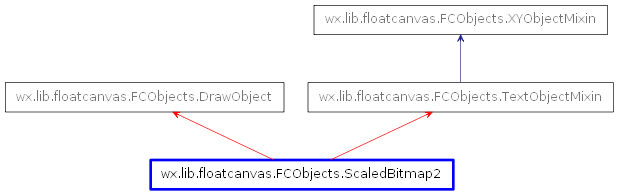

Inheritance diagram for class ScaledBitmap2:

Known Superclasses

wx.lib.floatcanvas.FCObjects.DrawObject, wx.lib.floatcanvas.FCObjects.TextObjectMixin

Methods Summary

__init__	Default class constructor.
CalcBoundingBox	Calculate the bounding box.
WorldToBitmap	Computes the bitmap coords from World coords.

Class API

---

class ScaledBitmap2(TextObjectMixin, DrawObject)

Draws a scaled bitmap

An alternative scaled bitmap that only scaled the required amount of the main bitmap when zoomed in: EXPERIMENTAL!

Methods

---

__init__(self, Bitmap, XY, Height, Width=None, Position = 'tl', InForeground = False)

Default class constructor.

Parameters:

• Bitmap (wx.Bitmap) – the bitmap to be drawn
• XY – the (x, y) coordinate of the corner of the scaled bitmap, or a 2-tuple, or a (2,) NumPy array
• Height – height to be used
• Width – width to be used, if None width is calculated from the aspect ratio of the bitmap
• Position (string) – a two character string indicating where in relation to the coordinates the bitmap should be oriented

  1st character	Meaning
  t	top
  c	center
  b	bottom

  2nd character	Meaning
  l	left
  c	center
  r	right

• InForeground (boolean) – should object be in foreground

---

CalcBoundingBox(self)

Calculate the bounding box.

---

WorldToBitmap(self, Pw)

Computes the bitmap coords from World coords.
