phoenix_title wx.lib.floatcanvas.FCObjects.Text

Draws a text object

The size is fixed, and does not scale with the drawing.

The hit-test is done on the entire text extent


class_hierarchy Class Hierarchy

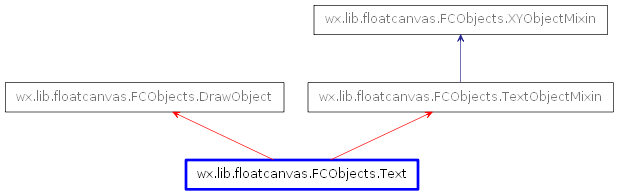

Inheritance diagram for class Text:


method_summary Methods Summary

__init__ Default class constructor.

api Class API


class Text(TextObjectMixin, DrawObject)

Draws a text object

The size is fixed, and does not scale with the drawing.

The hit-test is done on the entire text extent


Methods


__init__(self, String, xy, Size = 14, Color = "Black", BackgroundColor = None, Family = wx.FONTFAMILY_MODERN, Style = wx.FONTSTYLE_NORMAL, Weight = wx.FONTWEIGHT_NORMAL, Underlined = False, Position = 'tl', InForeground = False, Font = None)

Default class constructor.

Parameters:
  • string (string) – the text to draw
  • XY – the (x, y) coordinate of the corner of the text, or a 2-tuple, or a (2,) NumPy array
  • Size – the font size
  • Color – see SetColor
  • BackgroundColor – see SetColor
  • Family (FontFamily) – a valid wx.FontFamily
  • Style (FontStyle) – a valid wx.FontStyle
  • Weight (FontWeight) – a valid wx.FontWeight
  • Underlined (boolean) – underline the text
  • Position (string) – a two character string indicating where in relation to the coordinates the box should be oriented
  • InForeground (boolean) – should object be in foreground
  • Font (wx.Font) – alternatively you can define wx.Font and the above will be ignored.

    1st character Meaning
    t top
    c center
    b bottom
    2nd character Meaning
    l left
    c center
    r right
  • Font – a valid wx.Font
  • InForeground – should object be in foreground
