wx.html.HtmlWindow¶

wx.html.HtmlWindow is probably the only class you will directly use unless you want to do something special (like adding new tag handlers or MIME filters).

The purpose of this class is to display rich content pages (either local file or downloaded via HTTP protocol) in a window based on a subset of the HTML standard. The width of the window is constant, given in the constructor and virtual height is changed dynamically depending on page size. Once the window is created you can set its content by calling SetPage with raw HTML, LoadPage with a wx.FileSystem location or LoadFile with a filename.

wx.html.HtmlWindow uses the wx.Image class for displaying images, so you need to initialize the handlers for any image formats you use before loading a page. See wx.InitAllImageHandlers and wx.Image.AddHandler .

^^

Window Styles¶

This class supports the following styles:

wx.html.HW_SCROLLBAR_NEVER: Never display scrollbars, not even when the page is larger than the window.
wx.html.HW_SCROLLBAR_AUTO: Display scrollbars only if page’s size exceeds window’s size.
wx.html.HW_NO_SELECTION: Don’t allow the user to select text. ^^

^^

Events Emitted by this Class¶

Handlers bound for the following event types will receive one of the wx.html.HtmlCellEvent wx.html.HtmlLinkEvent parameters.

EVT_HTML_CELL_CLICKED: A wx.html.HtmlCell was clicked.
EVT_HTML_CELL_HOVER: The mouse passed over a wx.html.HtmlCell.
EVT_HTML_LINK_CLICKED: A wx.html.HtmlCell which contains a hyperlink was clicked. ^^

Note

If you want complete HTML/CSS support as well as a Javascript engine, consider using wx.html2.WebView instead.

Class Hierarchy¶

Inheritance diagram for class HtmlWindow:

Methods Summary¶

`__init__`	Default constructor.
`AddFilter`	Adds an input filter to the static list of available filters.
`AppendToPage`	Appends HTML fragment to currently displayed text and refreshes the window.
`GetClassDefaultAttributes`
`GetDefaultHTMLCursor`	Retrieves the default cursor for a given HTMLCursor type.
`GetInternalRepresentation`	Returns pointer to the top-level container.
`GetOpenedAnchor`	Returns anchor within currently opened page (see `wx.html.HtmlWindow.GetOpenedPage` ).
`GetOpenedPage`	Returns full location of the opened page.
`GetOpenedPageTitle`	Returns title of the opened page or “” if the current page does not contain <`TITLE`> tag.
`GetParser`	Returns a pointer to the current parser.
`GetRelatedFrame`	Returns the related frame.
`HistoryBack`	Moves back to the previous page.
`HistoryCanBack`	Returns `True` if it is possible to go back in the history i.e.
`HistoryCanForward`	Returns `True` if it is possible to go forward in the history i.e.
`HistoryClear`	Clears history.
`HistoryForward`	Moves to next page in history.
`LoadFile`	Loads an HTML page from a file and displays it.
`LoadPage`	Unlike `SetPage` this function first loads the HTML page from location and then displays it.
`OnCellClicked`	This method is called when a mouse button is clicked inside wx.html.HtmlWindow.
`OnCellMouseHover`	This method is called when a mouse moves over an HTML cell.
`OnLinkClicked`	Called when user clicks on hypertext link.
`OnOpeningURL`	Called when an URL is being opened (either when the user clicks on a link or an image is loaded).
`OnSetTitle`	Called on parsing <`TITLE`> tag.
`ReadCustomization`	This reads custom settings from Config.
`ScrollToAnchor`
`SelectAll`	Selects all text in the window.
`SelectLine`	Selects the line of text that pos points at.
`SelectWord`	Selects the word at position pos.
`SelectionToText`	Returns the current selection as plain text.
`SetBorders`	This function sets the space between border of window and HTML contents.
`SetDefaultHTMLCursor`	Sets the default cursor for a given HTMLCursor type.
`SetFonts`	This function sets font sizes and faces.
`SetPage`	Sets the source of a page and displays it, for example
`SetRelatedFrame`	Sets the frame in which page title will be displayed.
`SetRelatedStatusBar`	After calling `SetRelatedFrame` , this sets statusbar slot where messages will be displayed.
`SetStandardFonts`	Sets default font sizes and/or default font size.
`ToText`	Returns content of currently displayed page as plain text.
`WriteCustomization`	Saves custom settings into Config.

Properties Summary¶

`InternalRepresentation`	See `GetInternalRepresentation`
`OpenedAnchor`	See `GetOpenedAnchor`
`OpenedPage`	See `GetOpenedPage`
`OpenedPageTitle`	See `GetOpenedPageTitle`
`Parser`	See `GetParser`
`RelatedFrame`	See `GetRelatedFrame` and `SetRelatedFrame`

Class API¶

class wx.html.HtmlWindow(ScrolledWindow, HtmlWindowInterface)¶

Possible constructors:

HtmlWindow()

HtmlWindow(parent, id=ID_ANY, pos=DefaultPosition, size=DefaultSize,
           style=HW_DEFAULT_STYLE, name="htmlWindow")

HtmlWindow is probably the only class you will directly use unless you want to do something special (like adding new tag handlers or MIME filters).

Methods¶

__init__(self, *args, **kw)¶

Overloaded Implementations:

__init__ (self)

Default constructor.

__init__ (self, parent, id=ID_ANY, pos=DefaultPosition, size=DefaultSize, style=HW_DEFAULT_STYLE, name=”htmlWindow”)

Constructor.

The parameters are the same as Scrolled.__init__ constructor.

Parameters

parent (wx.Window) –
id (wx.WindowID) –
pos (wx.Point) –
size (wx.Size) –
style (long) –
name (string) –

static AddFilter(filter)¶

Adds an input filter to the static list of available filters.

These filters are present by default:

text/html
text/plain
image/*

The plain text filter will be used if no other filter matches.

Parameters: filter (wx.html.HtmlFilter) –

AppendToPage(self, source)¶

Appends HTML fragment to currently displayed text and refreshes the window.

Parameters: source (string) – HTML code fragment
Return type: bool
Returns: False if an error occurred, True otherwise.

static GetClassDefaultAttributes(variant=WINDOW_VARIANT_NORMAL)¶

Parameters: variant (WindowVariant) –
Return type: VisualAttributes

static GetDefaultHTMLCursor(type)¶

Retrieves the default cursor for a given HTMLCursor type.

Parameters: type (HTMLCursor) – HTMLCursor type to retrieve.
Return type: Cursor

New in version 4.1/wxWidgets-3.1.0.

GetInternalRepresentation(self)¶

Returns pointer to the top-level container.

Return type: wx.html.HtmlContainerCell

GetOpenedAnchor(self)¶

Returns anchor within currently opened page (see wx.html.HtmlWindow.GetOpenedPage ).

If no page is opened or if the displayed page wasn’t produced by call to LoadPage , empty string is returned.

Return type: string

GetOpenedPage(self)¶

Returns full location of the opened page.

If no page is opened or if the displayed page wasn’t produced by call to LoadPage , empty string is returned.

Return type: string

GetOpenedPageTitle(self)¶

Returns title of the opened page or “” if the current page does not contain <TITLE> tag.

Return type: string

GetParser(self)¶

Returns a pointer to the current parser.

Return type: wx.html.HtmlWinParser

GetRelatedFrame(self)¶

Returns the related frame.

Return type: Frame

HistoryBack(self)¶

Moves back to the previous page.

Only pages displayed using LoadPage are stored in history list.

Return type: bool

HistoryCanBack(self)¶

Returns True if it is possible to go back in the history i.e.

HistoryBack won’t fail.

Return type: bool

HistoryCanForward(self)¶

Returns True if it is possible to go forward in the history i.e.

HistoryForward won’t fail.

Return type: bool

HistoryClear(self)¶: Clears history.

HistoryForward(self)¶

Moves to next page in history.

Only pages displayed using LoadPage are stored in history list.

Return type: bool

LoadFile(self, filename)¶

Loads an HTML page from a file and displays it.

Parameters: filename (string) –
Return type: bool
Returns: False if an error occurred, True otherwise

See also

LoadPage

LoadPage(self, location)¶

Unlike SetPage this function first loads the HTML page from location and then displays it.

Parameters: location (string) – The address of the document. See the FileSystem Overview for details on the address format and wx.FileSystem for a description of how the file is opened.
Return type: bool
Returns: False if an error occurred, True otherwise

See also

LoadFile

OnCellClicked(self, cell, x, y, event)¶

This method is called when a mouse button is clicked inside wx.html.HtmlWindow.

The default behaviour is to emit a wx.html.HtmlCellEvent and, if the event was not processed or skipped, call OnLinkClicked if the cell contains a hypertext link.

Overloading this method is deprecated; intercept the event instead.

Parameters

cell (wx.html.HtmlCell) – The cell inside which the mouse was clicked, always a simple (i.e. non-container) cell
x (int) – The logical x coordinate of the click point
y (int) – The logical y coordinate of the click point
event (wx.MouseEvent) – The mouse event containing other information about the click

Return type

bool

Returns

True if a link was clicked, False otherwise.

OnCellMouseHover(self, cell, x, y)¶

This method is called when a mouse moves over an HTML cell.

Default behaviour is to emit a wx.html.HtmlCellEvent.

Overloading this method is deprecated; intercept the event instead.

Parameters

cell (wx.html.HtmlCell) – The cell inside which the mouse is currently, always a simple (i.e. non-container) cell
x (int) – The logical x coordinate of the click point
y (int) – The logical y coordinate of the click point

OnLinkClicked(self, link)¶

Called when user clicks on hypertext link.

Default behaviour is to emit a wx.html.HtmlLinkEvent and, if the event was not processed or skipped, call LoadPage and do nothing else.

Overloading this method is deprecated; intercept the event instead.

Also see wx.html.HtmlLinkInfo.

Parameters: link (wx.html.HtmlLinkInfo) –

OnOpeningURL(self, type, url)¶

Called when an URL is being opened (either when the user clicks on a link or an image is loaded).

The URL will be opened only if OnOpeningURL returns HTML_OPEN . This method is called by wx.html.HtmlParser.OpenURL .

You can override OnOpeningURL to selectively block some URLs (e.g. for security reasons) or to redirect them elsewhere. Default behaviour is to always return HTML_OPEN .

Parameters

type (HtmlURLType) – Indicates type of the resource. Is one of
- wx.html.HTML_URL_PAGE: Opening a HTML page.
- wx.html.HTML_URL_IMAGE: Opening an image.
- wx.html.HTML_URL_OTHER: Opening a resource that doesn’t fall into any other category.
url (string) – URL being opened.

Pointer to String variable that must be filled with an URL if OnOpeningURL returns HTML_REDIRECT .

Return type: tuple

wx.html.HTML_OPEN: Open the URL.
wx.html.HTML_BLOCK: Deny access to the URL, wx.html.HtmlParser.OpenURL will return None.
wx.html.HTML_REDIRECT: Don’t open url, redirect to another URL. OnOpeningURL must fill redirect with the new URL. OnOpeningURL will be called again on returned URL.

Returns: ( wx.html.HtmlOpeningStatus, redirectTo )

OnSetTitle(self, title)¶

Called on parsing <TITLE> tag.

Parameters: title (string) –

ReadCustomization(self, cfg, path="")¶

This reads custom settings from Config.

It uses the path ‘path’ if given, otherwise it saves info into currently selected path. The values are stored in sub-path wx.html.HtmlWindow. Read values: all things set by SetFonts , SetBorders .

Parameters

cfg (wx.ConfigBase) – Config from which you want to read the configuration.
path (string) – Optional path in config tree. If not given current path is used.

ScrollToAnchor(self, anchor)¶

Parameters: anchor (String) –
Return type: bool

SelectAll(self)¶: Selects all text in the window.

See also

SelectLine , SelectWord

SelectLine(self, pos)¶

Selects the line of text that pos points at.

Note that pos is relative to the top of displayed page, not to window’s origin, use wx.Scrolled.CalcUnscrolledPosition to convert physical coordinate.

Parameters: pos (wx.Point) –

See also

SelectAll , SelectWord

SelectWord(self, pos)¶

Selects the word at position pos.

Note that pos is relative to the top of displayed page, not to window’s origin, use wx.Scrolled.CalcUnscrolledPosition to convert physical coordinate.

Parameters: pos (wx.Point) –

See also

SelectAll , SelectLine

SelectionToText(self)¶

Returns the current selection as plain text.

Returns an empty string if no text is currently selected.

Return type: string

SetBorders(self, b)¶

This function sets the space between border of window and HTML contents.

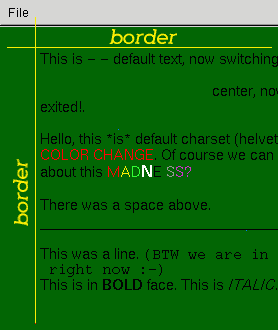

See image:

Parameters: b (int) – indentation from borders in pixels

static SetDefaultHTMLCursor(type, cursor)¶

Sets the default cursor for a given HTMLCursor type.

These cursors are used for all wx.html.HtmlWindow objects by default, but can be overridden on a per-window basis.

Parameters

type (HTMLCursor) – HTMLCursor type to retrieve.
cursor (wx.Cursor) – The default cursor for the specified cursor type.

New in version 4.1/wxWidgets-3.1.0.

SetFonts(self, normal_face, fixed_face, sizes)¶

This function sets font sizes and faces.

See wx.html.HtmlDCRenderer.SetFonts for detailed description.

Parameters

normal_face (string) –
fixed_face (string) –
sizes (list of integers) –

See also

SetSize()

SetPage(self, source)¶

Sets the source of a page and displays it, for example:

htmlwin.SetPage("<html><body>Hello, world!</body></html>")

If you want to load a document from some location use LoadPage instead.

Parameters: source (string) – The HTML to be displayed.
Return type: bool
Returns: False if an error occurred, True otherwise.

SetRelatedFrame(self, frame, format)¶

Sets the frame in which page title will be displayed.

format is the format of the frame title, e.g. “HtmlHelp : %s”. It must contain exactly one s. This s is substituted with HTML page title.

Parameters

frame (wx.Frame) –
format (string) –

SetRelatedStatusBar(self, *args, **kw)¶

Overloaded Implementations:

SetRelatedStatusBar (self, index)

After calling SetRelatedFrame , this sets statusbar slot where messages will be displayed.

(Default is -1 = no messages.)

Parameters: index (int) – Statusbar slot number (0..n)

SetRelatedStatusBar (self, statusbar, index=0)

Sets the associated statusbar where messages will be displayed.

Call this instead of SetRelatedFrame if you want statusbar updates only, no changing of the frame title.

Parameters

statusbar (wx.StatusBar) – Statusbar pointer
index (int) – Statusbar slot number (0..n)

New in version 2.9.0.

SetStandardFonts(self, size=-1, normal_face="", fixed_face="")¶

Sets default font sizes and/or default font size.

See wx.html.HtmlDCRenderer.SetStandardFonts for detailed description.

Parameters

size (int) –
normal_face (string) –
fixed_face (string) –

See also

SetFonts

ToText(self)¶

Returns content of currently displayed page as plain text.

Return type: string

WriteCustomization(self, cfg, path="")¶

Saves custom settings into Config.

It uses the path ‘path’ if given, otherwise it saves info into currently selected path. Regardless of whether the path is given or not, the function creates sub-path wx.html.HtmlWindow.

Saved values: all things set by SetFonts , SetBorders .

Parameters

cfg (wx.ConfigBase) – Config to which you want to save the configuration.
path (string) – Optional path in config tree. If not given, the current path is used.

Properties¶

InternalRepresentation¶: See GetInternalRepresentation

OpenedAnchor¶: See GetOpenedAnchor

OpenedPage¶: See GetOpenedPage

OpenedPageTitle¶: See GetOpenedPageTitle

Parser¶: See GetParser

RelatedFrame¶: See GetRelatedFrame and SetRelatedFrame

Navigation

wx.html.HtmlWindow¶

Window Styles¶

Events Emitted by this Class¶

Class Hierarchy¶

Methods Summary¶

Properties Summary¶

Class API¶

Methods¶

Properties¶
